2026 DIY Jewelry Box Woodworking Gift Guide & Plans

The Sentimental Value of Handcrafted Storage

In 2026, the shift toward hyper-personalized, sustainable gifting has elevated the custom-built keepsake box from a simple craft project to a profound expression of care. Embarking on a DIY jewelry box woodworking project allows you to tailor every dimension, compartment, and material choice to the specific tastes and collection needs of the recipient. Unlike mass-produced alternatives that rely on MDF and synthetic veneers, a handcrafted solid wood box offers heirloom longevity. However, building a jewelry box requires more than just basic carpentry; it demands an understanding of metallurgy, gemology, and material science to ensure the storage environment actively protects, rather than degrades, precious metals and delicate stones.

This comprehensive guide breaks down the critical decisions you must make when designing a custom jewelry box for specific life occasions, from weddings to milestone graduations, ensuring your gift is both a functional storage solution and a generational keepsake.

Matching Wood Species to the Occasion

The choice of wood dictates not only the aesthetic warmth of the box but also its structural stability and chemical compatibility with jewelry. According to experts at the Woodworking Network, understanding the Janka hardness rating and the natural oil content of your chosen timber is critical for precision joinery and long-term preservation.

Avoid High-Tannin Woods: Never use Red Oak or White Oak for jewelry storage. Oak contains high levels of tannic acid, which can off-gas in enclosed spaces and accelerate the tarnishing of sterling silver and the corrosion of copper alloys. Stick to inert woods like Walnut, Maple, or Mahogany for the primary carcase and interior dividers.

Essential Joinery & Hardware for Heirloom Quality

The hardware on a jewelry box experiences high-frequency articulation. A lid opened and closed daily will quickly destroy cheap, stamped-steel hinges. For a true heirloom piece, you must invest in precision-machined solid brass hardware. Brusso Hardware remains the gold standard in 2026 for fine box making.

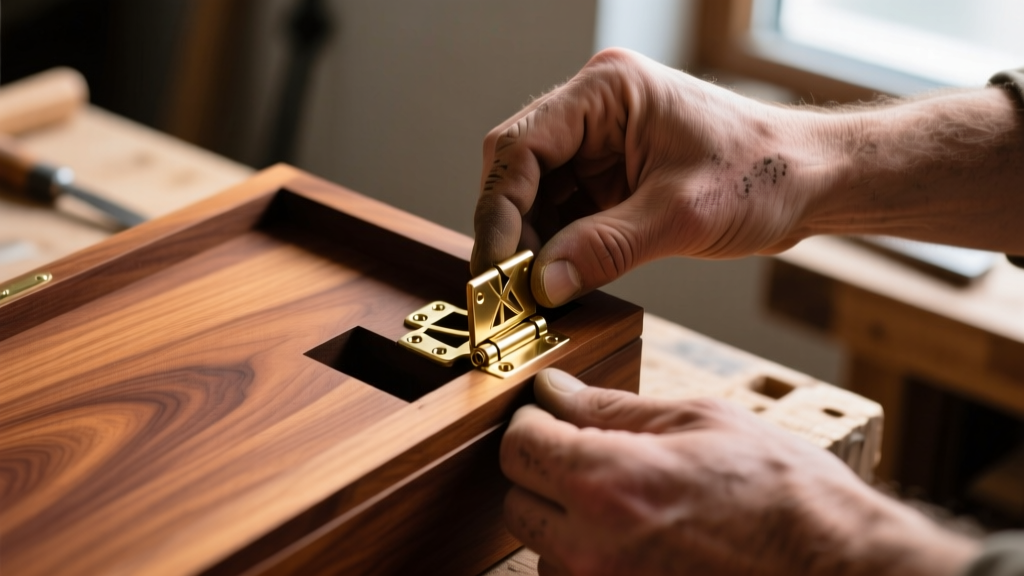

Hinge Selection and Routing Tolerances

For traditional lift-lid boxes, quadrant hinges (such as the Brusso BP-502) are essential. They hold the lid open at exactly 90 degrees, preventing the lid from falling back and snapping the wood grain. Installing these requires absolute precision:

• Router Setup: Use a high-quality 1/4" straight router bit with a micro-adjustable depth stop.
• Depth Control: The recess depth must match the hinge leaf thickness within 1/64th of an inch. Any deeper, and the lid will bind; any shallower, and the box will not close flush.
• Mortising: Chisel the corners square to ensure the brass seats perfectly without relying on wood filler, which compromises the structural integrity of the screw holes.

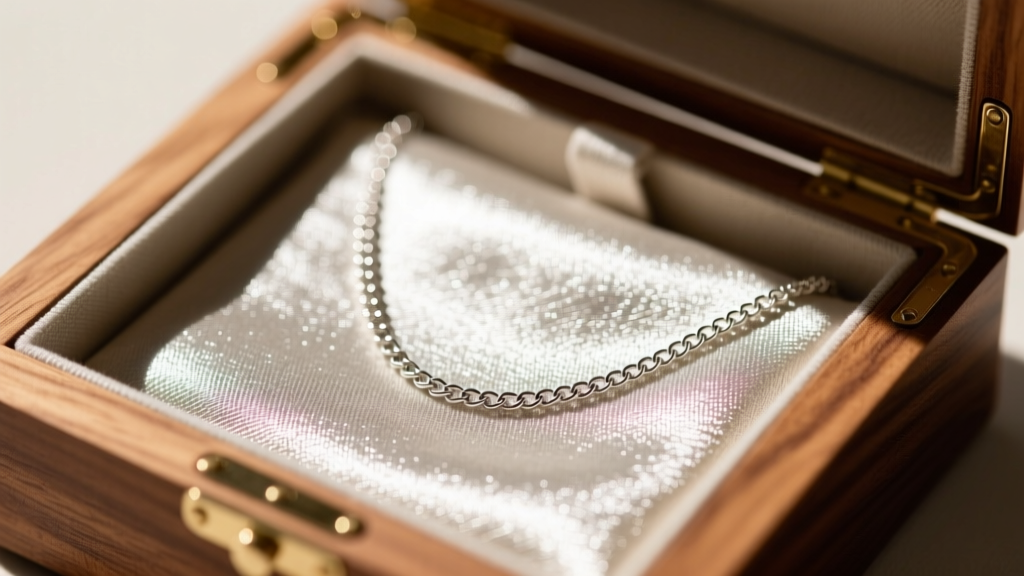

Anti-Tarnish Interior Linings

The interior environment is where most DIY builders fail. Standard felt or craft foam often contains sulfur compounds or acidic adhesives that cause rapid silver tarnishing. The Gemological Institute of America (GIA) recommends storing silver in environments that neutralize hydrogen sulfide gas. For your DIY build, line all interior compartments with Pacific Silvercloth. This specialized cotton flannel is embedded with thousands of microscopic silver particles that act as a sacrificial shield, absorbing tarnishing gases before they reach the stored jewelry. Secure the cloth using acid-free PVA glue or double-sided archival tape, avoiding spray adhesives that can off-gas volatile organic compounds (VOCs).

Occasion-Specific Design Frameworks

A successful gift guide approach requires matching the internal layout of the box to the recipient's lifestyle and the specific occasion being celebrated. Here are three distinct design frameworks for your woodworking plans.

1. The Wedding Keepsake Vault

Target Audience: Brides and couples merging households.
Design Focus: Security, ring storage, and document preservation.

For a wedding gift, incorporate a hidden, false-bottom drawer operated by a rare-earth magnet release. The primary tray should feature dedicated ring rolls—tightly packed foam cylinders covered in velvet—to prevent diamond bands from scratching each other. Include a deep, un-partitioned lower well lined with archival-grade linen for storing marriage certificates and vintage family heirlooms that require flat, uncompressed storage.

2. The Graduation Travel Case

Target Audience: Recent graduates moving into new apartments or traveling for work.
Design Focus: Modularity, durability, and transit safety.

Design a lower-profile, latching box using blind dovetail joinery for maximum corner strength. Instead of fixed wooden dividers, route shallow 1/8" dados into the interior walls to accept removable, configurable acrylic or wooden slats. This allows the graduate to adapt the storage from long necklace channels to small earring grids as their collection evolves. Finish the exterior with a high-build marine varnish to protect against the humidity fluctuations of frequent travel.

3. The Anniversary Display Stand & Box Hybrid

Target Audience: Long-term partners with established, curated collections.
Design Focus: Visibility, accessibility, and aesthetic integration.

Combine closed storage with open display. Build a base box with two shallow, velvet-lined drawers for everyday studs and small pendants. Above the box, construct a tiered, open-air display rack using turned maple spindles for hanging necklaces, preventing chain tangles. Incorporate a subtle, battery-operated LED touch-light strip routed into the underside of the top tier to illuminate the gems, transforming the functional storage into a bedroom vanity centerpiece.

Finishing Techniques for Jewelry Safety

The final finish applied to your DIY jewelry box woodworking project must be fully cured and chemically inert before any jewelry is introduced. Many commercial polyurethanes and oil-based stains continue to off-gas solvents for months, which can degrade the nacre of pearls and the porous surface of opals and turquoise.

"When building for jewelry storage, the finish is not just about protecting the wood; it is about protecting the contents from the wood's finish. Inert, fully sealed barriers are non-negotiable for high-end gemstones."

The Safest Finishing Schedule:

1. Seal the Wood: Apply two coats of Zinsser Bulls Eye dewaxed shellac. Shellac is a natural resin that dries hard, seals the wood pores completely, and is entirely inert once the alcohol solvent flashes off.
2. Build the Topcoat: Follow with three coats of a high-quality water-based lacquer or a specialized jewelry-safe wiping varnish (like General Finishes Arm-R-Seal), allowing a full 14 days of cure time in a well-ventilated space.
3. Final Polish: Rub out the finish with 0000 steel wool and a light paste wax. Crucial: Ensure no wax residue gets into the interior joints or lining areas, as wax can transfer to jewelry and dull gemstone facets.

Conclusion

Building a custom jewelry box is a masterclass in precision woodworking and material science. By carefully selecting inert wood species, investing in solid brass hardware, and integrating anti-tarnish linings like Pacific Silvercloth, you elevate a simple wooden vessel into a highly functional, protective environment for precious metals and gems. Whether you are crafting a hidden-compartment vault for a wedding or a modular travel case for a graduation, this DIY jewelry box woodworking approach ensures your 2026 gift will be cherished, and utilized, for generations to come.
